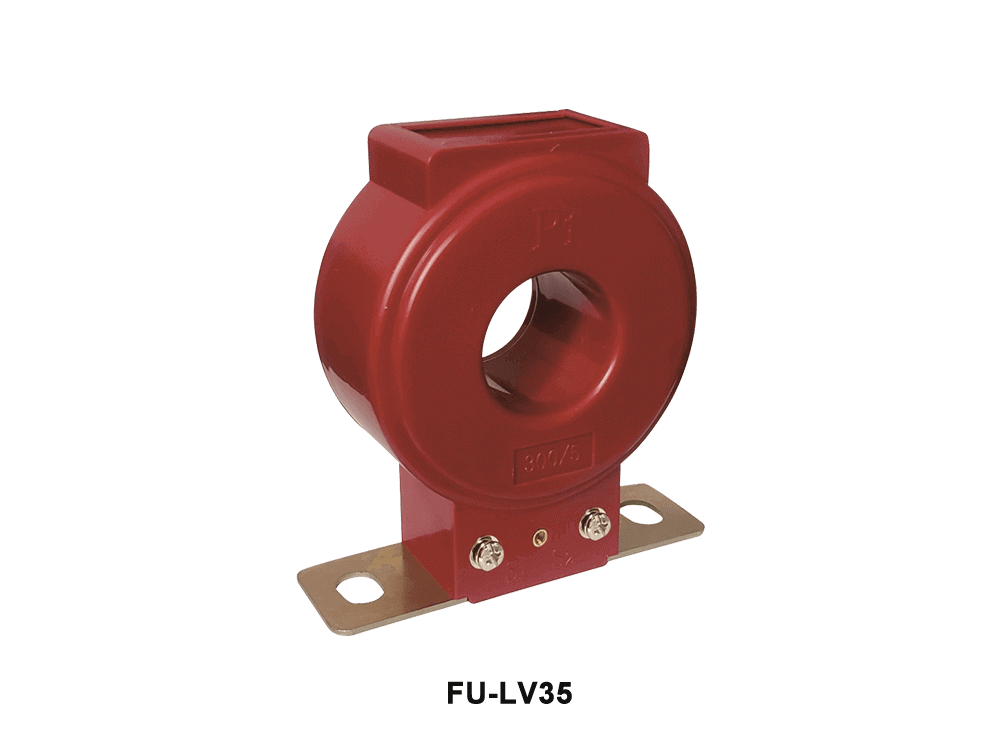

FU-LV30 SERIALCE UL LOW LOST LOW VOLTAGE CURRENT TRANSFORMER

FU-LV30 serial low voltage current transformer is low cost ac current instrument transformer, measuring AC current from 5A to 3000 Amps passing through the center conductor. This model has four diameter version ( Φ30mm, φ35mm, φ45mm, φ42*10mm, φ50*12mm, φ50*103mm), suite for all kinds of customers application. Low voltage current transformers are intended for supplying measuring instruments and protection circuits of electrical power devices with a maximum operating voltage of 0.72 kV and frequency of 50 Hz (or 60 Hz after prior arrangement with the manufacturer). LV current transformers are supplied with accessories which help to install and secondary terminal cover with possibility of sealing. All of our current transformers are strictly comply IEC60044-1, IEC 61869-2, NTC 2205, GB1208-2006, GB20840.1, GB20840.2, JJG1021, ANSI/IEEE C57.13, IEC 60185.

Request a quote Download Catalogue video

APPLICATION

■ Load Center;

■ Energy meter;

■ Protection relay;

■ Power quality meter;

■ Digital Fault Recorders;

■ Three Phase Balance Control;

■ Smart Grid Application Features;

■ Various power monitoring systems;

■ Energy meter current measurement;

■ In-Factory Display In-Home Display;

■ Sub-Metering Accurate Measurement;

■ Power Measurement Device For PLC;

■ Inverters for Solar & Wind Turbine Systems;

■ HEMS (Home Energy Management System);

■ BEMS (Building Energy Management System);

■ Data Loggers to analyze Building & Machinery Performance;

FEATURES

■ Most cost-effective;

■ Rated voltage ≤0.72kV;

■ Burden from 2.5VA to 20VA;

■ CE, UL / EN 61010 - 1 certified;

■ High accuracy 0.2, 0.2S, 0.5, 0.5S;

■ Design using for more than 20years;

■ Small-size, compact size, light-weight;

■ Measurement range of 5A to 3000A AC;

■ Low phase shift for power measurement;

■ Safe and Easy installation to distribution panels;

■ Fully encapsulated by unsaturated resin casting;

■ Isolated plastic case recognized according to UL94-V0;

■ Using high magnetic silicon steel, good linearity and high sensitivity;

■ Holding wire diameter: Φ30, φ35, φ45, φ42*10, φ50*12, φ50*103, φ70*137mm;

■ Current, electrical energy measurement or relay protection in 50Hz/60Hz A.C. circuits;

■ Middle open window area for let-through bus and Metal plate base for CT fixing installation;

PARAMETERS

Technical parameters
Standards IEC60044-1;IEC60185; IEC 61869-2; ANSI/IEEE C57.13;
GB20840.1, GB20840.2, JJG1021;

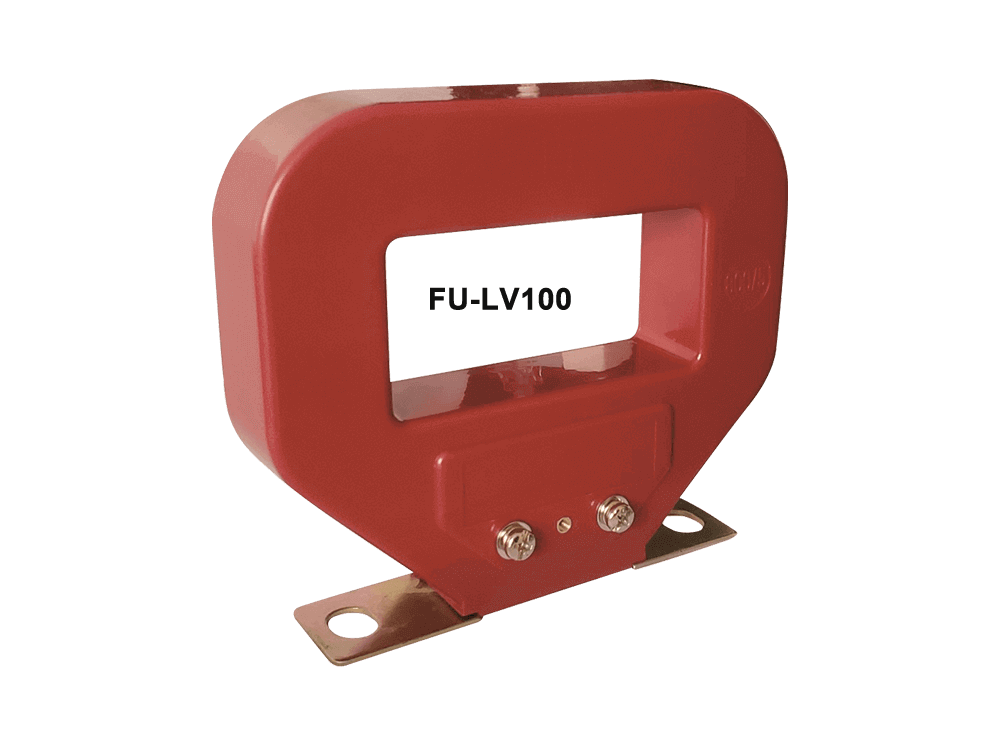

Model FU-LV30; FU-LV35; FU-LV45; FU-LV42; FU-LV50; FU-LV100; FU-LV130;
Type Indoor type
Rated system Voltage, kV 0.38
Highest system voltage, kV <0.72
Fault Current of system, KA 25 KA /3Sec
Accuracy Class 0.2S, 0.2, 0.5S, 0.5 (IEC60044-1 standard)
Rated primary current 100, 200A, 300A, 400A, 500A, 600A, 800A, 1000A, 1500A, 1600A, 2000A, 2500A, 3000A
Rated load 2.5VA-20VA
Rated frequency 50Hz or 60Hz
Rated secondary current 5A or 1A
Ratio 100/5A, 200/5A, 300/5A, 400/5A, 500/5A, 600/5A, 800/5A, 1000/5A, 1500/5A, 1600/5A, 2000/5A,2500/5A, 3000/5A
Rated short-time thermal current 100kA, 1S
Rated continuous thermal current 120%I1n
Secondary winding power-frequency voltage 3kV, 1min
Instrument security factor FS ≤10
Material of insulation Dry type, epoxy resin
Insulation class E
Mechanical parameters
Dimensions (W×D×H) (mm) φ30xφ115x46; φ35xφ117x47; φ45xφ119x47; φ10*55xφ125x47; φ12*63xφ135x48; φ50*103xφ150x37; φ70*137xφ215x37;
Weight (kg) 1; 0.8; 0.8; 0.9; 1; 1.6; 2.8;
Operating conditions
Operating temperature -20°C to +50°C
Daily average temp <+40°C
Storage temperature -40°C to +70°C
Altitude <3500 meters
Condition No existence of severely begrimed, erosive and radioactive gas in the air. Permission of long-term operation under rated current.

TECHNICAL DATA

Type FU-LV30; FU-LV35; FU-LV45; FU-LV42; FU-LV50; FU-LV100; FU-LV130;
Purpose Measuring current transformer
Rated primary current (AMP) Accuracy class and rated load(VA)
0.2S 0.2 0.5S 0.5
100 2.5 2.5 2.5 2.5
150 2.5 2.5 2.5 2.5
200 2.5 2.5 5 5
300 2.5 2.5 5 5
400 5 5 5 5
500 5 5 7.5 7.5
600 5 5 7.5 10
750 5 5 10 10
800 7.5 7.5 15 15
1000 10 10 15 15
1500 15 15 15 15
1600 15 15 15 15
2000 15 15 15 15
2500 20 20 20 20
3000 20 20 20 20
