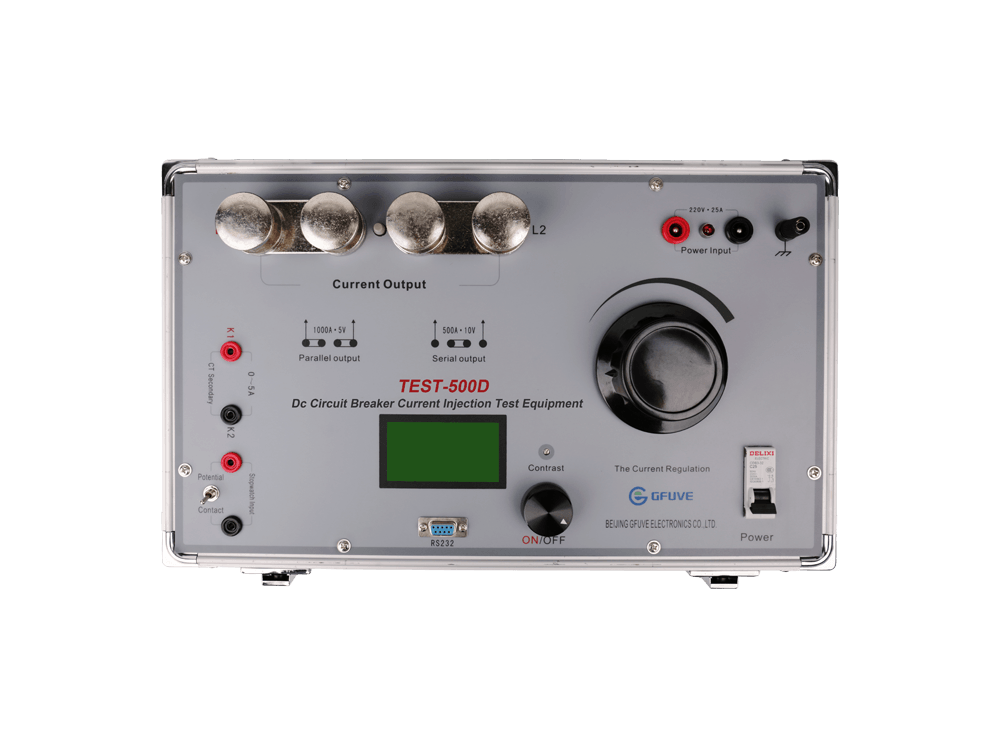

TEST-500D DC circuit breaker current injection test equipment adopts ARM Chip to control its output process and large capacity of toroidal transformers. It is equipped with LCD display; it can show DC primary current value, second voltage small signal measurement value, the action time of DC circuit breaker. Packing is used as aluminum alloy body with PC panel. TEST-500D is mainly applied to DC current sensor testing in the DC power system and contact resistance test which need large current. This model current injection test equipment is ideal for 1. performance and error tests of DC current sensors; 2. primary tests of DC protective relays; 3. large current tests on low-voltage and high-voltage DC circuit breakers; 4.commissioning tests that require variable DC currents.
■ Ground Grid Testing
■ DC Switchgear Testing
■ DC current sensor testing
■ DC Circuit Breaker Testing
■ DC Primary injection tests
■ DC Protective Relay Testing
■ Current Transformer Testing
■ Portable designed
■ Quick and easy to use
■ Current resolution 0.1A
■ With 3m large current cable
■ Max current output up to 550A/1000A
■ Built-in digital timer resolution 1ms
■ Built-in digital ammeter 0.5% accuracy
■ Measurement DC signal DC voltage 0-5V optional
■ Small size, light weight, easy to test on-site
■ Permanent current up to 550A/1100 A, 3KVA/5KVA
■ Thermal and short-circuit & overload protection
| Electrical parameters | |
|---|---|
| Accuracy | ±0.5% |
| Power supply (AC) | 220V±10%·25A, 50Hz/60Hz or 110V±10%·50A, 50Hz/60Hz |
| Current output (AC) | 1000A·5V or 500A·10V |
| Capacity | 3KVA/5KVA |
| The current output waveform distortion | ≤5% |
| Dual protection | overload electronic protection and software protection |
| Primary current | |
| Range | 0-550A or 0-1100A |
| Resolution | 0.1A |
| Accuracy | <0.5% |
| Secondary voltage small signal measurement (Optional) | |
| Range | 0-5V |
| Resolution | 0.001V |
| Accuracy | <0.5% |
| Current duration | |
| 1000A range | 1000A 2-3minutes 500A 3-6minutes |
| 500A range | 500A 2-3minutes |
| Continuous output | 200A or 400A |
| With timer | |
| Range | 0.0001~999.999S |
| Resolution | 0.001S |
| Accuracy | <0.2% ±2 words |
| Standard | |
| Standard | IEC61010-1;IEC 61326-1 |
| Communication port | RS232 |
| Cable | length 2x3m, 70mm² |
| Mechanical parameters | |
| Dimensions (W×D×H)(mm) | 430×260×260 |
| Weight(kg) | 25 |
| Environmental conditions | |
| Operating temperature | -10°C to 50°C |
| Storage temperature | -40°C to 70°C |
| Relative humidity | ≤95%, on-condensing |
