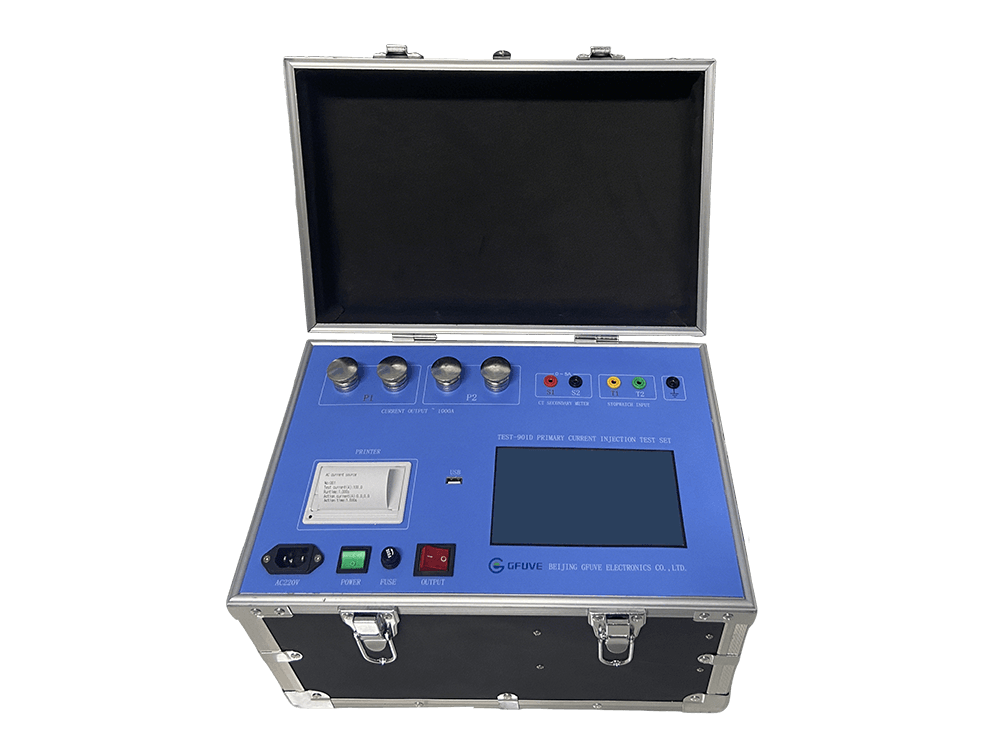

TEST-901D1000A PRIMARY CURRENT INJECTION TEST EQUIPMENT

TEST-901D is a primary current injection testing equipment designed to perform primary tests requested in substations commissioning. It allows to perform different tests for current transformers, protection relays, circuit breaker etc. it adopts ARM Chip to control its output process and large capacity of toroidal transformers. It is equipped with 7 inch color touch LCD display and high accuracy current meter; it can show primary current value, second current value, CT turn ratio and polarity, the action time of circuit breaker and action current, with USB port and printer. TEST-901D primary current injector is an excellent tool for testing substations, many electrical commission engineers select it in global market.

Request a quote Download Catalogue video

APPLICATION

■ Switchgear Testing

■ Ground Grid Testing

■ Primary injection tests

■ Circuit Breaker Testing

■ Protective Relay Testing

■ Current Transformer Testing

FEATURES

■ Portable designed

■ With thermal printer

■ Auto test by program

■ With CT polarity test

■ Quick and easy to use

■ 7 inch TFT color touch LCD

■ With CT ratio test function

■ With 6m large current cable

■ Small size, light weight 20kg

■ Permanent current up to 1000 A, 5KVA

■ Built-in digital timer resolution 1ms

■ Built-in digital ammeter 0.5% accuracy

■ Secondary current measurement from 0 to 6A

■ Thermal and short-circuit & overload protection

PARAMETERS

Electrical parameters
Accuracy ±0.5%
Power supply (AC) 220V±10%·25A, 50Hz/60Hz or
110V±10%·50A, 50Hz/60Hz
Current output (AC) 1000A·5V or 500A·10V
Capacity 5KVA
The current output waveform distortion ≤5%
Dual protection overload electronic protection and software protection
Primary current
Range 0-1000A
Resolution 0.1A
Accuracy <0.5%
Secondary measurement
Range 0-6A
Resolution 0.001A
Accuracy <0.5%
Current duration
1000A range 1000A   2-3minutes
500A   3-6minutes
500A range 500A   2-3minutes
Continuous output 300A
With timer
Range 0.0001～999.999S
Resolution 0.001S
Accuracy <0.2% ±2 words
With printer
Printer Thermal printer
LCD
LCD 7 inch TFT color touch
Resolution 800×480
Standard
Standard IEC61010-1,IEC 61326-1,IEC60044-1, IEC60044-6, IEC61869-1,2,3, ANSI/IEEE C57.13
Safety standards GB 4793.1-2007
EMC EMC standard 89/336/EEC, FCC Subpart B of Part 15 Class A, IEC 1000-4-2 /3 /4 /6
Communication port USB

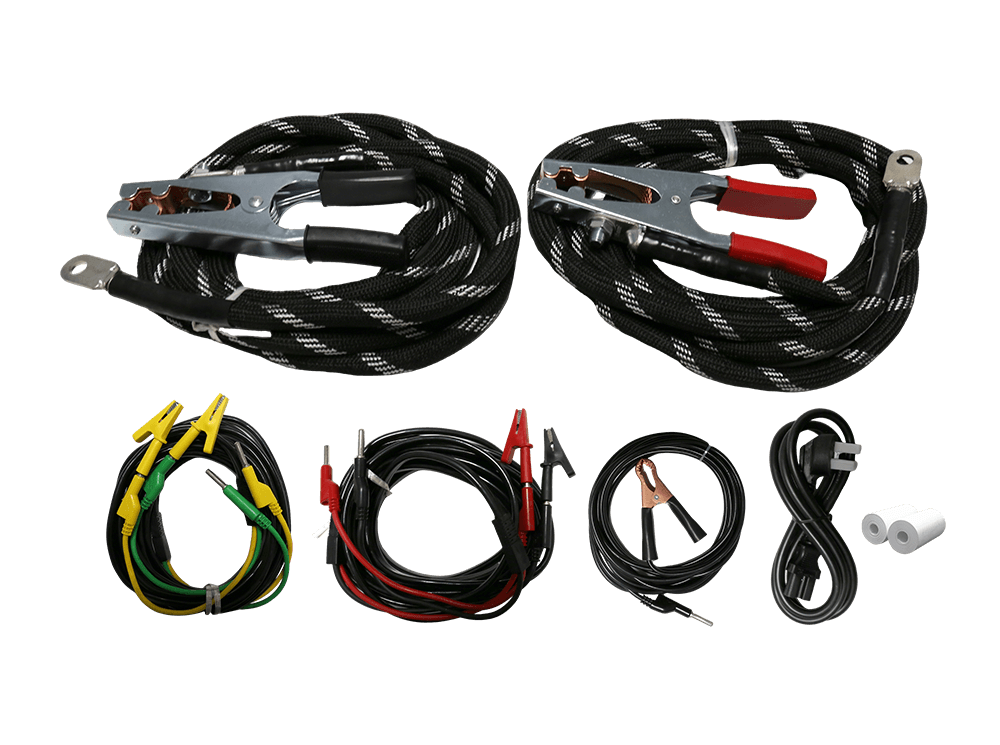

Cable Length 2x6m or 2x5m , 2x4m, 95mm²
Mechanical parameters
Dimensions (W×D×H)(mm) 400 x 250 x 250
Weight (kg) 20
Environmental conditions
Operating temperature -10°C to 50°C
Storage temperature -40°C to 70°C
Relative humidity ≤95%, on-condensing

SELECTION GUIDE

Model Accuracy Primary Current Ammeter(0-6A) Timer Power Injection Current time Dimension (W×D×H)(mm) Weight Remark
TEST-901 0.5% 0-1100A YES YES 5KVA 1000A: 2-3min;
500A: 3-6min		 430×260×260 25KG Integrated structure
TEST-901D 0.5% 0-1000A YES YES 5KVA 1000A: 2-3min;
500A: 3-6min		 400×250×250 20KG Integrated structure
TEST-902 0.5% 0-2200A YES YES 12KVA 2000A: 2-3min;
1000A: 3-6min		 360×300×295 and 320×300×300 35KG+15KG Fission structure
TEST-903 0.5% 0-3300A YES YES 15KVA 3000A: 2-3min;
1500A: 3-6min		 380×350×360 and 340×290×420 48KG+42KG Fission structure
TEST-905 0.5% 0-5500A YES YES 30KVA 5000A: 2-3min;
2500A: 3-6min		 430×430×445 and 550×450×600 68KG+55KG Fission structure
