FEATURES & FUNCTIONS

■ Underground pipeline detection: Accurately detecting the location, path direction, and burial depth of pipelines, completed by one person simultaneously; The maximum detection depth is 20 meters, and the detection and positioning accuracy is within 10cm;

■ Live cable path detection: Accurately detect the position, path direction, and burial depth of the cable, which can be completed synchronously by one person; The maximum detection depth is 20 meters, ensuring detection and positioning accuracy within 10cm;

■ Optical cable routing detection: Accurately detecting the position, path direction, and burial depth of optical cables, completed by one person synchronously; The maximum detection depth is 20 meters, ensuring detection and positioning accuracy within 10cm;

■ Our technology is internationally leading, a true industry masterpiece, and our country's own national brand;

■ Organic integration of functions, truly multi-functional, greatly reducing usage costs, saving you money, and unparalleled cost-effectiveness;

■ New features are added through software upgrades, and the T-9000 can configure and upgrade instrument functions through software without making any hardware changes. In the future, more powerful features can be infinitely configured, such as new frequencies, new color display interfaces, data storage and download functions, GPS functions, and more;

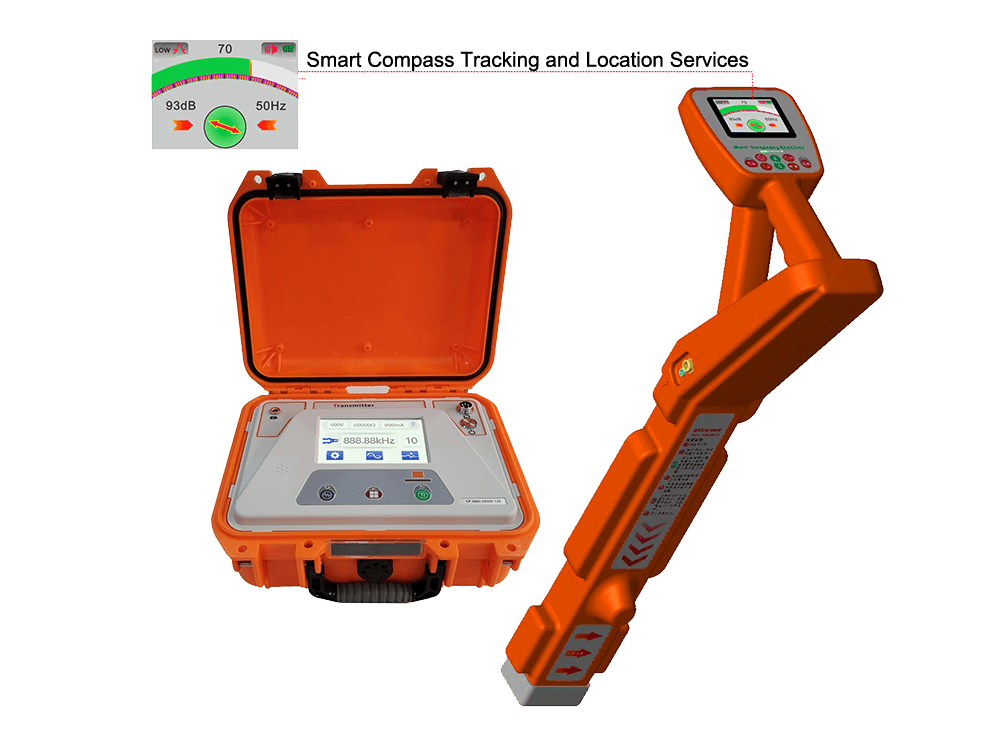

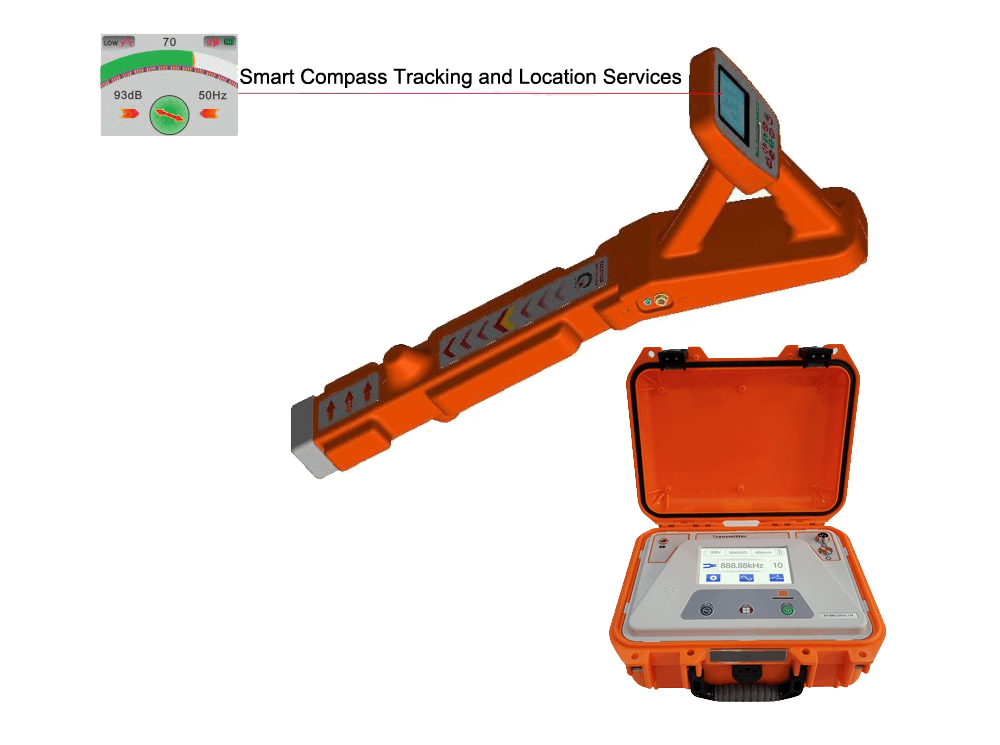

■ Color intelligent compass tracking and positioning function, real-time and intuitive display of the position, direction, turning and burial depth of the detected object, easy to understand operation, can be completed synchronously by one person;

■ Dynamic left and right arrow indication and sound, indicating the center position of the pipeline. This observation tool can quickly locate the target center;

■ Ergonomic design, compact structure, good balance, lightweight, sturdy, durable, high protection level, can be used in harsh environments;

■ High definition backlight color LCD screen display, low power consumption, clear screen, can be used all day long in any weather and lighting conditions;

■ Supports passive detection of 50Hz and 60Hz, with active frequency coverage of any frequency between 50Hz and 200 KHz;

■ The ultra wide frequency range can meet the needs of different users and supports customized frequencies;

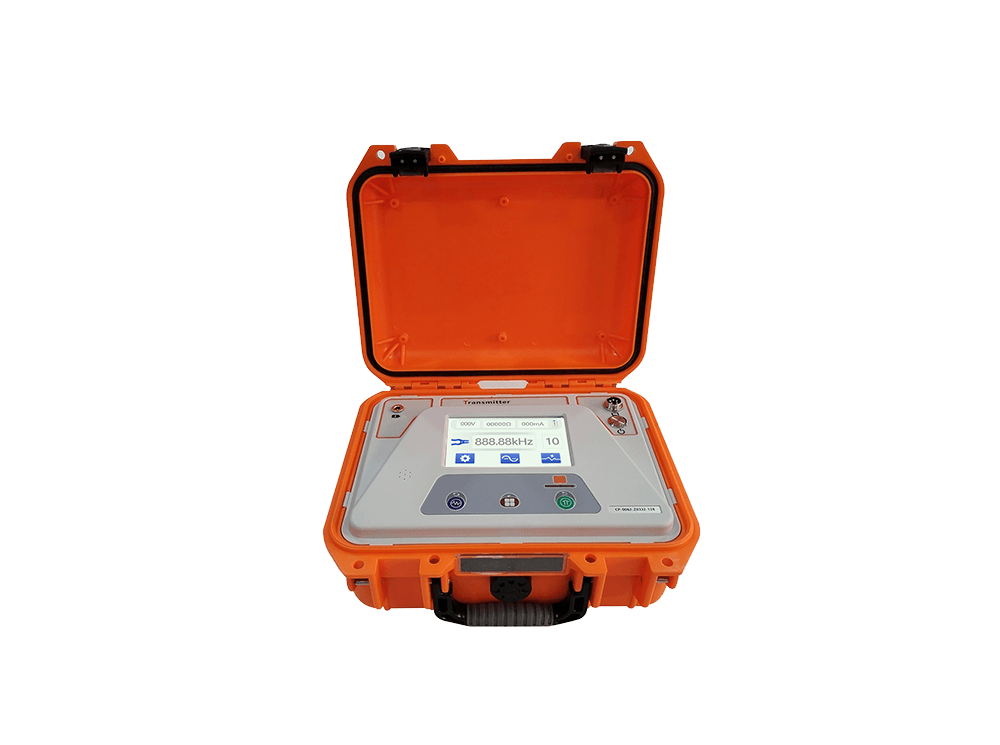

■ Maximum output power of 10 watts: suitable for deep laying and long-distance pipeline positioning;

■ Waterproof touch sensitive buttons.

SPECIFICATIONS

■ Full frequency reception function

The T-9000 receiver has achieved a breakthrough in full frequency reception function, with multiple main detection frequencies pre-set between 50Hz and 200 KHz. Based on the site conditions, the most reasonable detection frequency is selected to improve the detection capability of complex pipelines.

■ Advanced signal reception technology

1. New type of receiver coil with ultra-high sensitivity: dynamic range up to 140dB, capable of detecting deeper pipelines and farther distances;

1. Special coil receiving technology: compresses the signal response range, improves the resolution of detection signals and the positioning accuracy of dense pipelines;

3. Use double coil technology to eliminate or suppress electromagnetic interference in space and adjacent underground pipelines;

The anti clutter filter automatically filters out interference signals, significantly improving the signal-to-noise ratio and signal stability of the detection signal, which is beneficial for the precise positioning of dense pipelines;

Dual core high-speed processor improves signal processing and computing speed, making pipeline positioning and depth measurement faster;

Practical peak signal identification and clear color display screen make signal response more intuitive and clear;

4. Limited signal response: The presence or absence of pipelines is clear at a glance, effectively avoiding false positives.

■ Multiple positioning methods:Different signal reception methods are suitable for different pipeline conditions, which is conducive to comparing and verifying detection results under complex pipeline conditions.

1. The peak method has strong anti-interference ability and can accurately locate and depth in dense pipeline environments. It is suitable for high-voltage lines of any voltage level, dense and complex pipeline conditions, and is the preferred positioning mode for pipeline detection;

2. The valley value method has high signal sensitivity, can receive signals from deep pipelines, and has a long detection distance. It is used to detect single pipelines with large burial depths or long distances;
The anti-interference ability and signal sensitivity of the wide peak method are between the peak method and the valley method, and can be used to detect single pipelines with large burial depths.

■ Multiple depth measurement methods

1. The translation depth measurement method is convenient for ensuring depth measurement accuracy even under complex conditions;

2. The direct reading depth measurement method is suitable for single pipeline condition depth measurement and depth reference.
